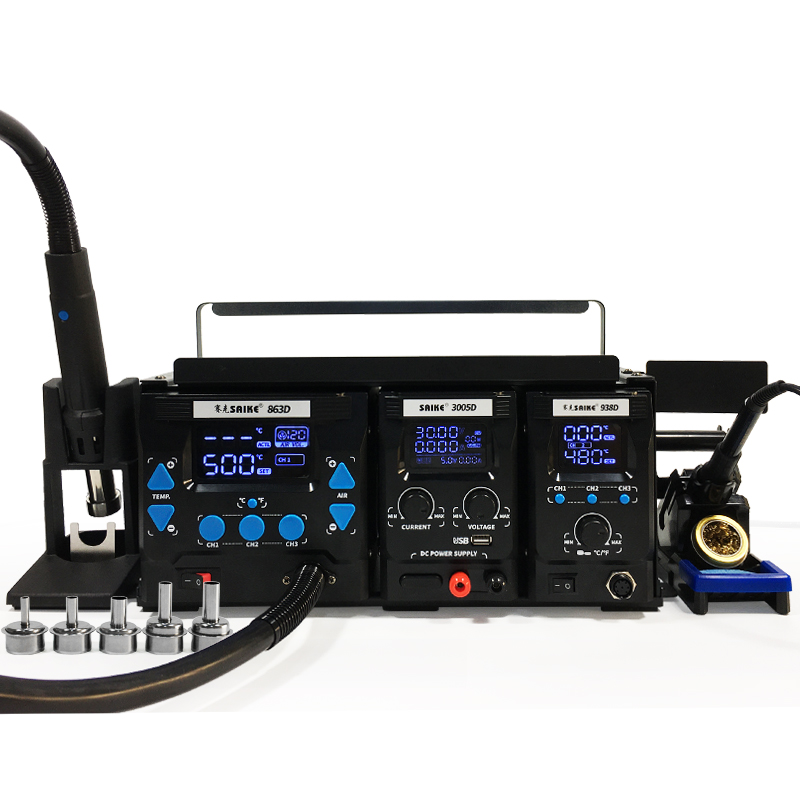

SAIKE 863-30 3 in 1 repair station
Hot air, soldering and 30V 5A power supply in one repair workstation
SAIKE 863-30 combines an 863D hot air rework station, 938D soldering station and 3005D DC regulated power supply for repair shops, PCB repair benches, phone repair and training rooms.
Three-module repair workstation for model confirmation and buyer reference.
Buyer fit
One workstation for repair benches that need three core tools
Use 863-30 when the buyer wants hot air rework, soldering operation and adjustable DC power output in one combined bench setup.
Repair shops
Suitable for phone repair, PCB repair, SMD rework, soldering work and powered circuit testing.
Distributors
A high-function model for catalog listings, sample orders and bulk repair bench quotations.
Training benches
Useful for teaching hot air rework, soldering operation and DC power supply diagnosis in one station.
Product details

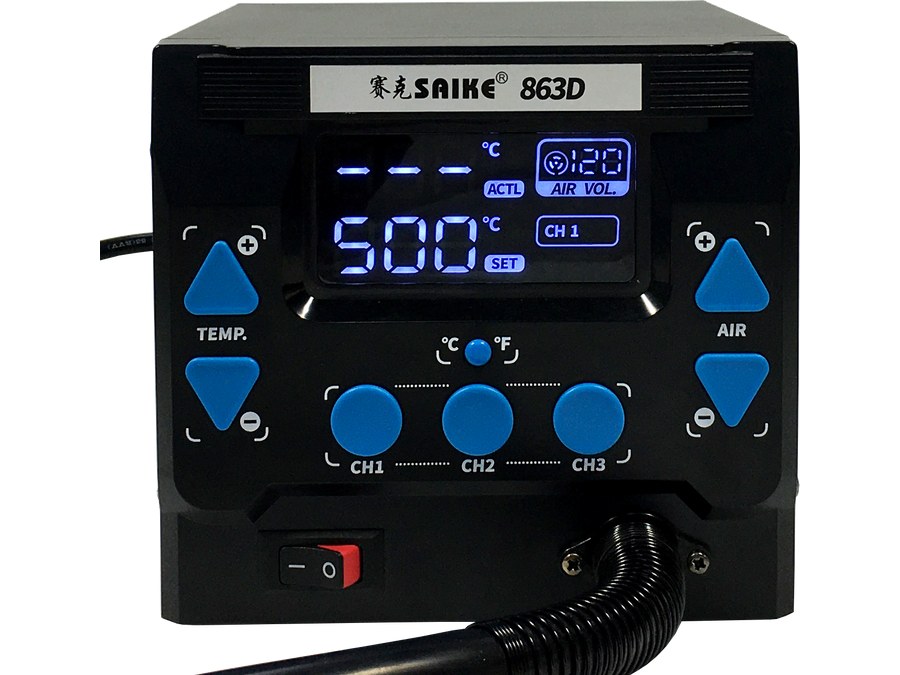

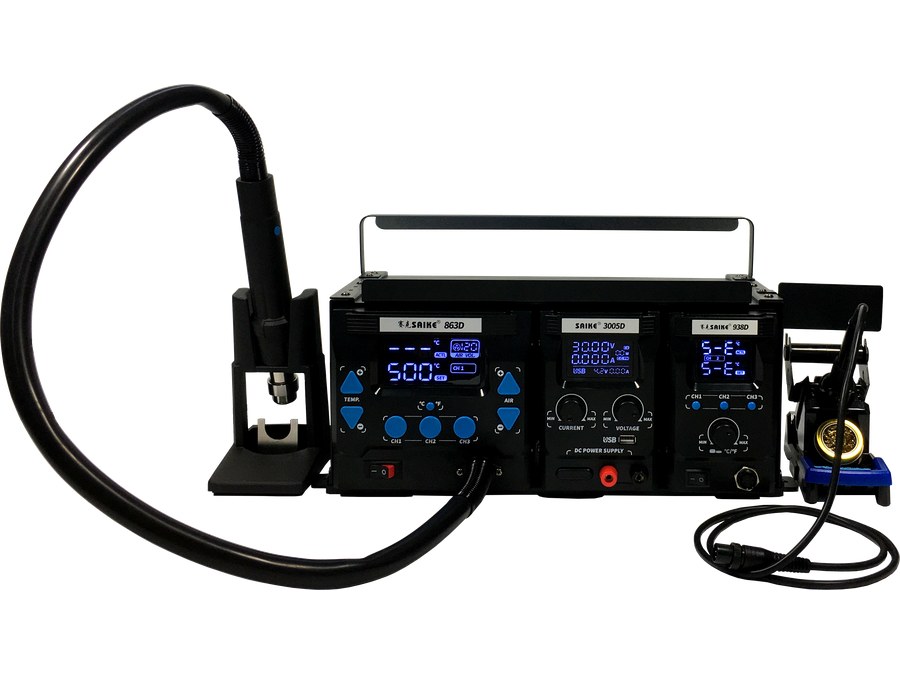

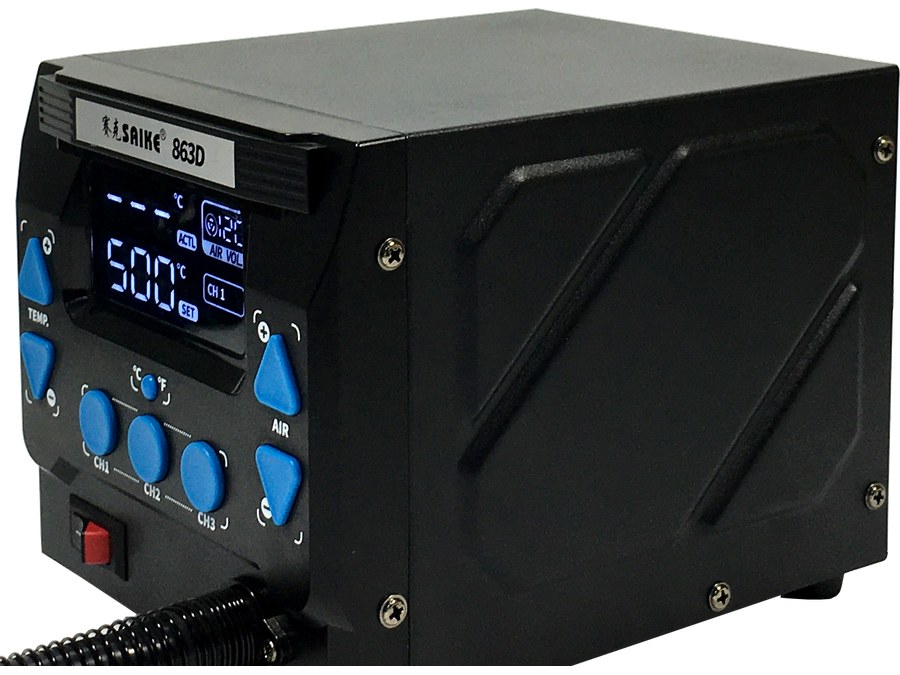

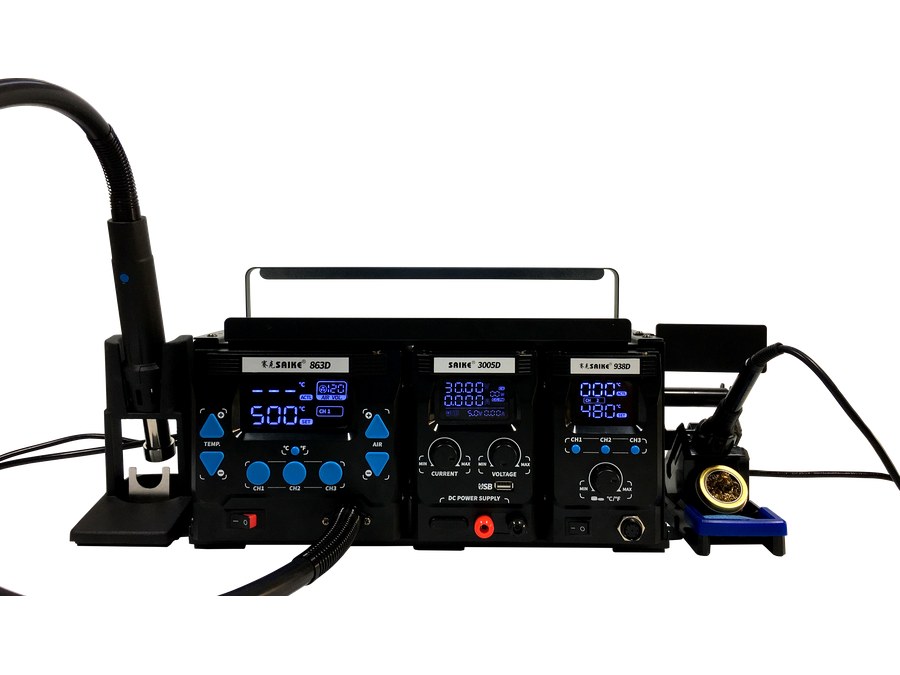

Front panel, side structure and working setup
Use these images to confirm the panel layout, combined frame, handle placement and practical bench setup before quotation.
Core functions
Three independent modules for repair bench work
863D hot air rework
1000W hot air gun with compressor motor blower, strong wind pressure, high air volume and 100C-500C temperature range.
938D soldering station
85W soldering section with 938D ceramic heating core, rapid compensation, anti-static design and 10-minute hibernation.
3005D DC power supply
0-30V and 0-5A regulated DC output for phone repair, circuit board testing and electronic component diagnosis.
Component function guide
How each module is normally used on the repair bench
Hot air gun
Generates hot airflow to heat solder into a molten state for soldering, desoldering, component removal, heat shrinkage and preheating.
Suitable for SOIC, CHIP, QFP, PLCC, BGA, SMD and mobile phone wiring/base repair.
Soldering iron
Transfers heat through the soldering tip to melt solder for component welding and desoldering operations.
Suitable for larger solder joints or pads that need enough heat for better soldering results.
DC regulated power supply
Outputs adjustable DC voltage for circuit boards and electronic devices during testing, debugging and repair.
Supports fault diagnosis for phone repair and other electronic circuit maintenance work.
Operating details
Control, safety and module operation details
These details preserve the key operating logic buyers need to understand before choosing a higher-function repair station.
Independent module operation
- 863D hot air, 938D soldering and 3005D DC power supply are integrated into one combined workstation.
- Each module works independently and can be used separately or simultaneously.
- The combined design improves work efficiency while reducing separate bench setup needs.
Temperature control and protection
- Microcomputer PID program control tracks the hot air gun and soldering iron temperature at high speed.
- Fast temperature compensation improves stability and adapts to demanding repair environments.
- Self-detection covers over-temperature, short circuit, open circuit and overload failure display/protection.
Hot air handle operation
- The hot air handle enters working state when picked up from the holder.
- Returning the handle stops heating, delays cold air cooling and then enters standby state.
- The handle also supports one-click switching between cold air, hot air and standby.
Memory channels and power protection
- The hot air gun stores three temperature and air volume channels for quick switching.
- The soldering iron stores three temperature channels and has a fixed 10-minute hibernation function.
- The DC power supply includes short circuit, over current and over temperature protection.
Configuration options
Quote the workstation alone or build it into a repair kit
Before quotation, confirm voltage version, plug type, order quantity, destination country and package requirement.
Standard package
Three host modules, composite frame, hot air holder, nozzle set, soldering handle, soldering holder, output cable and manual.
3 in 1 workstation option
Use this model when the buyer wants hot air, soldering and regulated DC output in one bench system.
Repair bench kit
Add nozzles, soldering tips, spare handles, heating cores, output cables, solder wire, solder wick or desoldering tools according to the buyer’s repair work.
Bulk order quote
Confirm voltage version, plug type, carton quantity, packaging requirement and destination country before quotation.
Typical applications
Where buyers can use this model
Standard configuration
Physical items included in the package
Package items are listed separately from operation details so buyers can confirm what is included.
- 863D host machine with hot air gun handle: 1 pcs
- 938D host machine: 1 pcs
- 3005D host machine: 1 pcs
- Composite frame: 1 pcs
- Hot air gun holder: 1 pcs
- Nozzles: 3 pcs (5mm, 8mm, 10mm) straight air outlet; 2 pcs (8mm, 10mm) spiral air outlet
- Soldering iron handle with iron tip and heater: 1 pcs
- Soldering iron holder with cleaning sponge and iron tip polishing box: 1 pcs
- Power supply interface output cable: 1 pcs
- User manual: 1 pcs
Technical specifications
Key parameters for buyer confirmation
| Model | 863-30 |
|---|---|
| Input voltage | 220V-240V/AC, 50Hz |
| Power consumption | 1270W |
| Weight | 13.65kg |
| Inner box size | 555*550*20mm |
| Packing quantity | 1 piece / box |
| Outer packing size | 555*550*20mm |
| Hot air gun (863D) | |
| Working voltage | 220V-240V/AC, 50Hz |
| Power dissipation | 1000W |
| Display form | LED digital, resolution 1C |
| Heating element | Skeleton type ceramic heating core |
| Temperature range | 100C-500C |
| Temperature stability | +/-1C |
| Air flow type | Compressor motor blower |
| Gas flow | 120 L/min max |
| Noise | Less than 45dB |
| Handle length | About 100cm including handle line |
| Soldering iron (938D) | |
| Working voltage | 24V/AC |
| Rated power | 24W |
| Power consumption | 85W |
| Maximum power | 120W |
| Display form | LED digital, resolution 1C |
| Heating element | 938D ceramic heating core |
| Temperature range | 200C-480C |
| Temperature stability | +/-2C no load |
| Handle length | About 100cm including handle line |
| DC regulated power supply (3005D) | |
| Working voltage | 220V-240V/AC, 50Hz |
| Power consumption | 150W |
| Output voltage | 0-30V |
| Load current | 0-5A |
Optional add-on support
Accessories, consumables and spare parts support
For repair shops and distributors, list the workstation together with compatible spare parts, working accessories and daily consumables so buyers know how to maintain and restock the model after purchase.
Model support parts
Useful for after-sales service, accessory restocking and model-specific order confirmation.
- 863-series hot air nozzle set
- 938D-series soldering tip options
- DC test probes and output connector cable
- Module-specific service parts can be confirmed before bulk order
Working accessories
Confirm nozzle, tip, output cable and holder compatibility by model before bulk order.

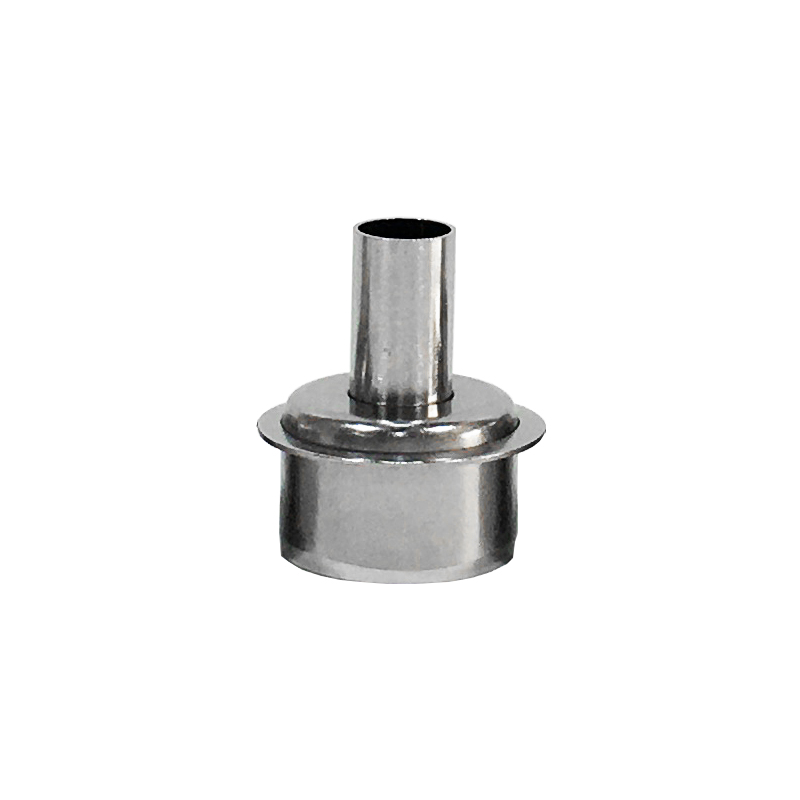

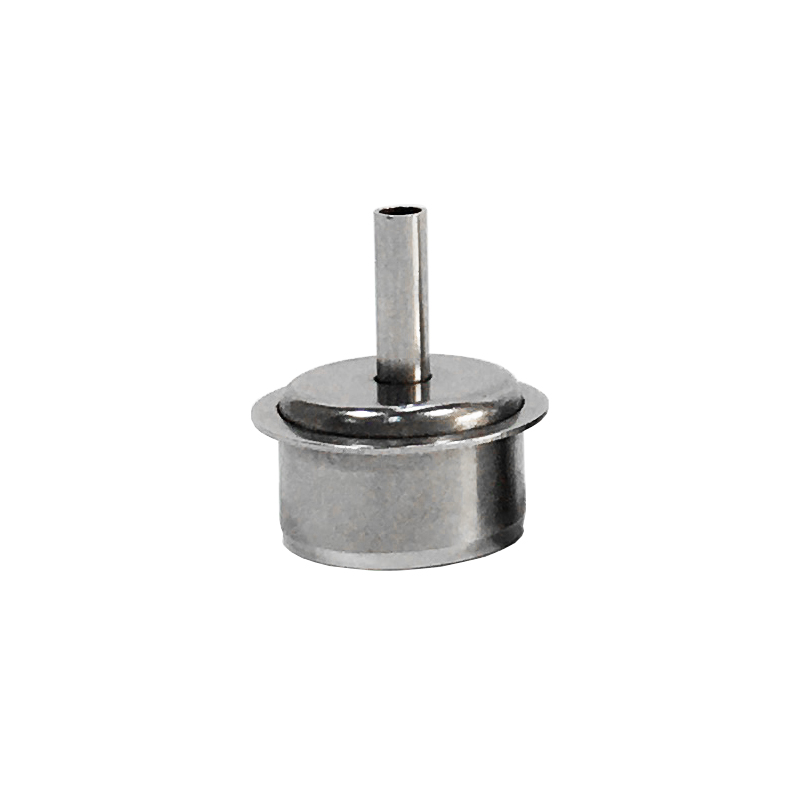

- Straight air nozzles: 5mm, 8mm, 10mm

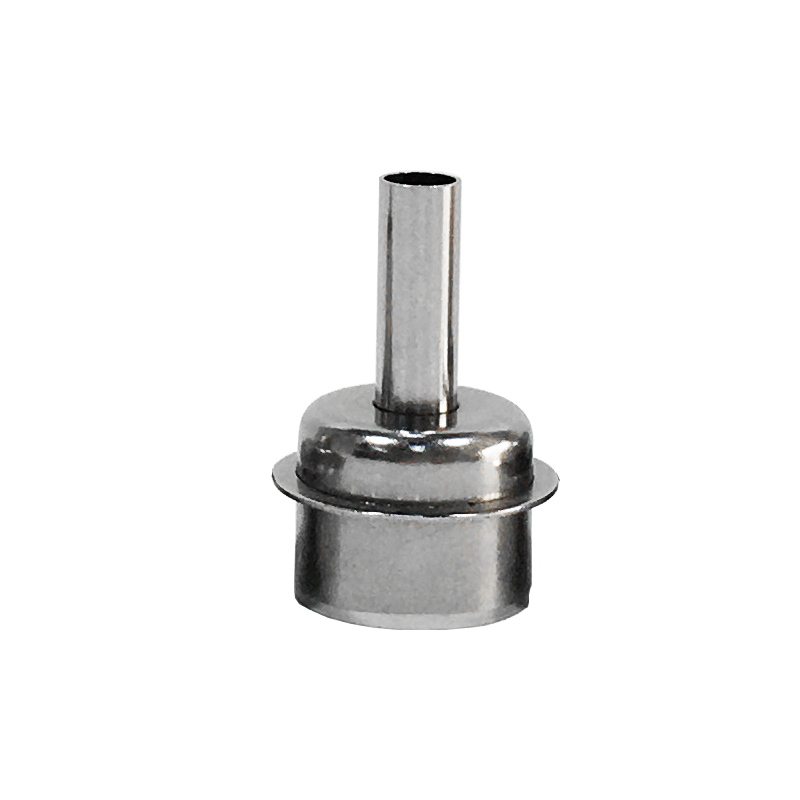

- Spiral air nozzles: 8mm, 10mm

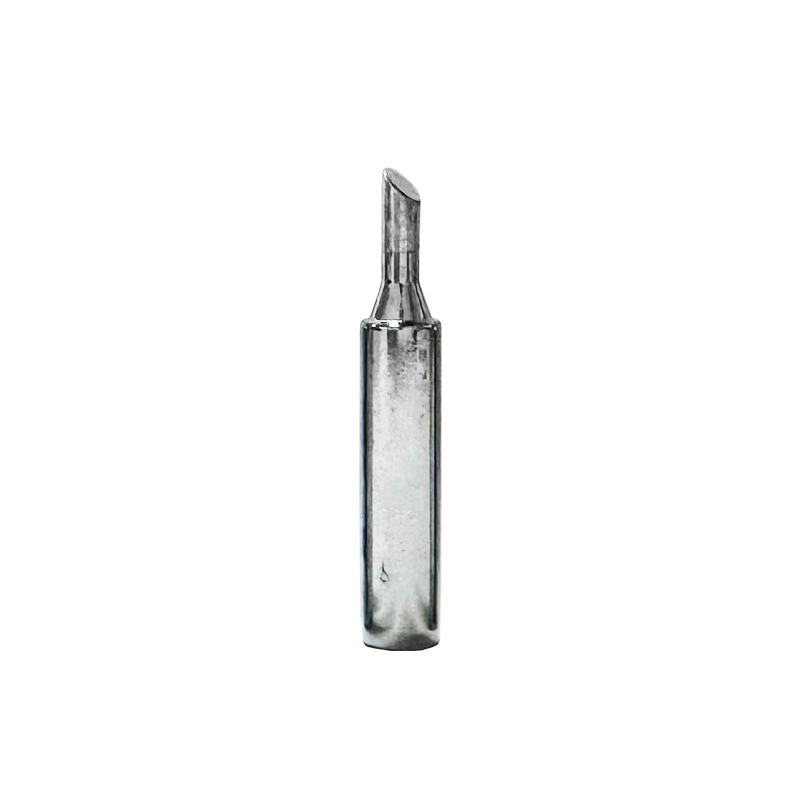

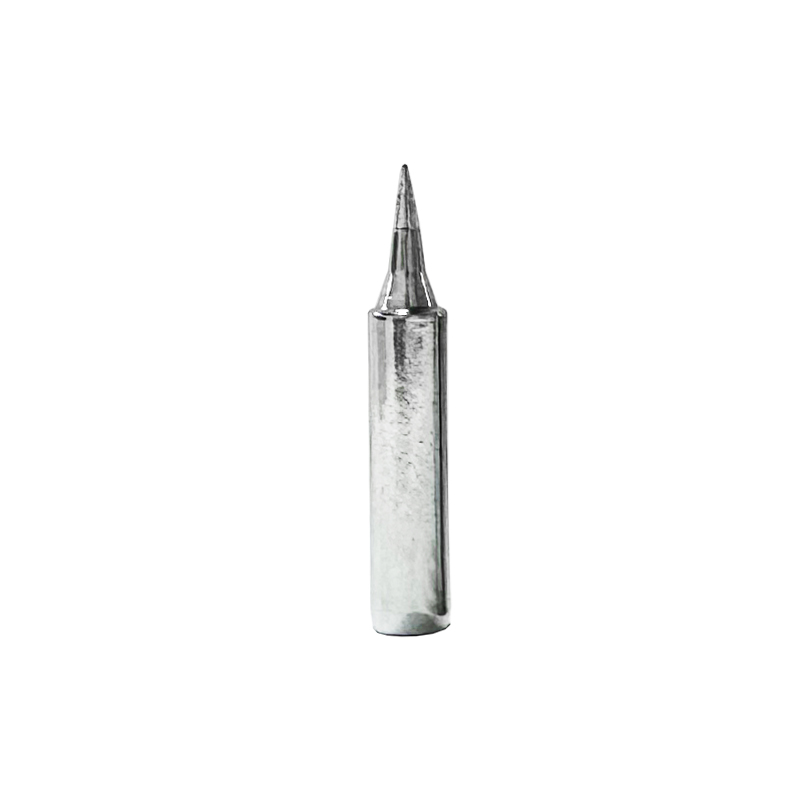

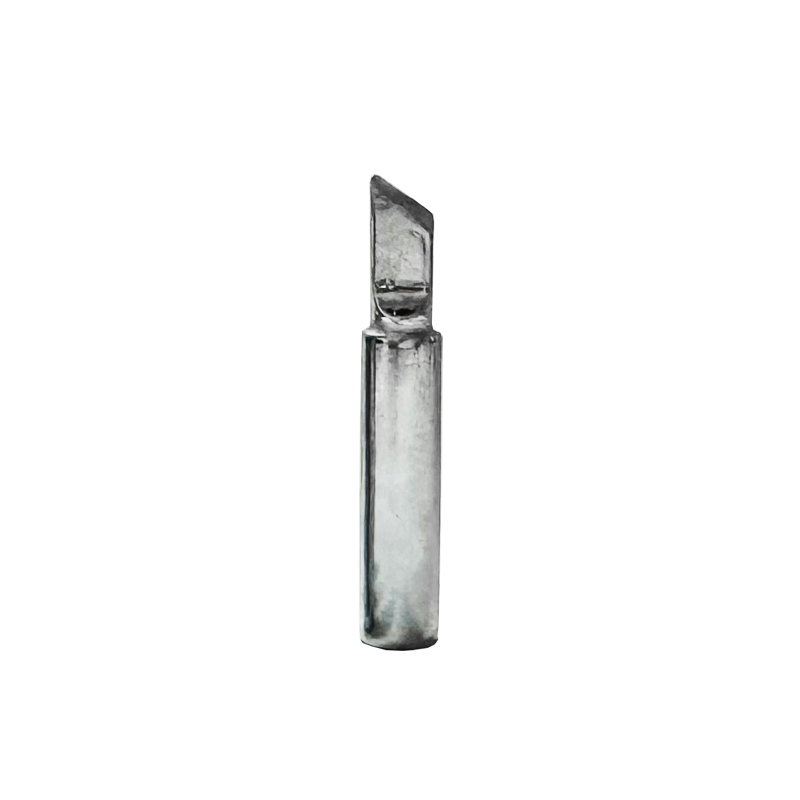

- Soldering tips for different contact areas
- Power supply output cable or test leads
Recommended consumables
Offer these as optional add-on items for repair bench restocking and starter kits.
- Solder wire
- Solder wick
- Desoldering pump
- Cleaning sponge / brass wire
Need 863-30 for repair shop, distributor or bulk order?
Send your required voltage, plug type, quantity and destination country. We can help confirm package options and quotation details.
