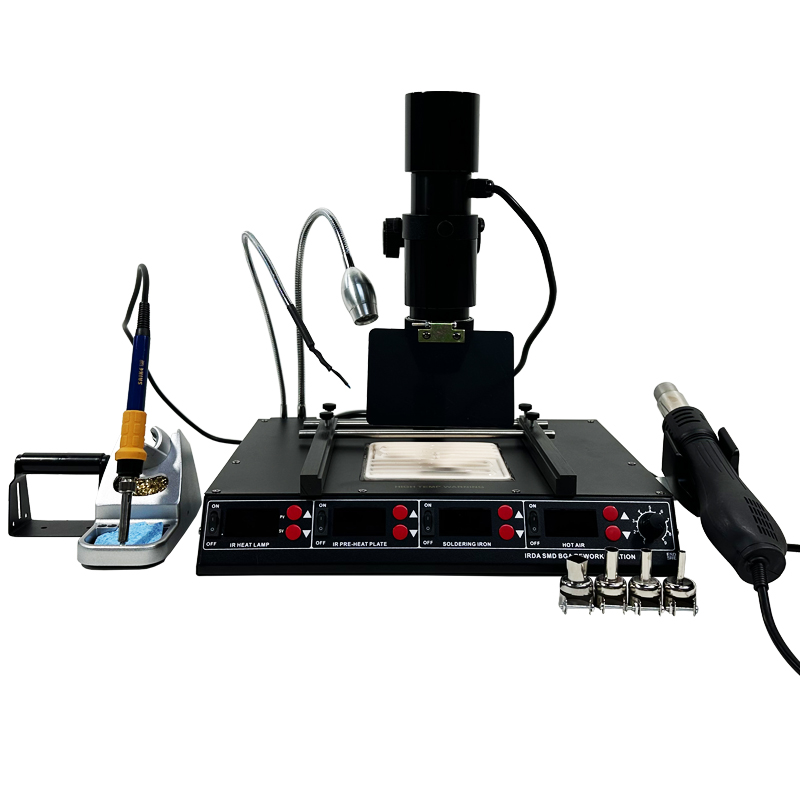

SAIKE 8510D Hot air soldering station with Infrared BGA Rework Station and Preheating station

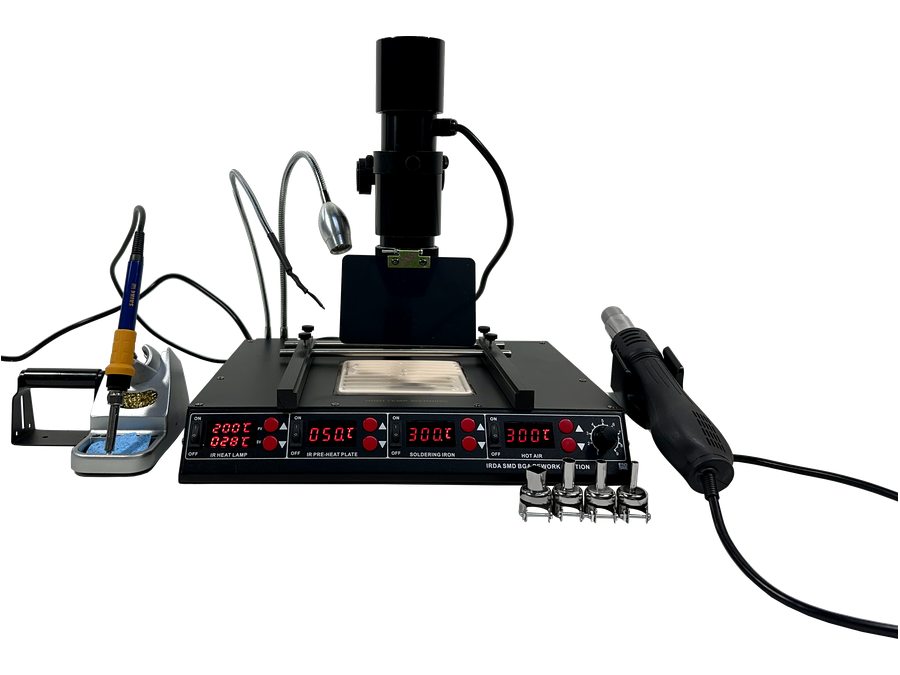

Description

Features
1. This product is a multi-functional infrared BGA repair equipment specially designed according to the needs of the market. It integrates Hot air gun, Soldering station, Preheating station, Infrared and Universal lighting in one, with comprehensive functions, and provides a simple and convenient maintenance experience at any time. The five functions also have independent switches, which can be used individually or simultaneously. It occupies less work surface, practical and energy saving, performance has been further improved.
2. Each part of the equipment adopts an independent microcontroller, even if there is a problem in one way, it does not affect the normal work of the other way, and the high integrated circuit design greatly reduces the failure rate of the product.
3. Using Microcomputer processor PID program control technology, the program in milliseconds to track the actual temperature of the hot air gun, soldering iron and Preheating station, fast temperature compensation speed enhanced temperature stability, temperature static error is small, fast temperature compensation, can adapt to a variety of harsh environment.
4. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.
5. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
6. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
7. The handle of the Hot air gun is equipped with an induction device, as long as the handle is picked up from the handle frame, the Hot air gun can quickly enter the working state; Put the handle back on the handle frame, the Hot air gun will stop heating, delay blowing cold air to cool down, and finally enter the standby state; Convenient real-time operation, while extending the service life of the heater.
8. Hot air gun uses a brushless fan as the air source, air volume is large, air volume is adjustable, gentle wind power and minimal noise.
9. Soldering iron uses 131A ceramic heating core, peak heating, rapid heating, and fast temperature compensation function. Therefore, it is very suitable for the diswelding of various solder joints, especially for the diswelding of large solder joints, rough blocks and miscellaneous difficult solder joints.
10. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
11. Using Ferro-alloy Soldering iron seat, durable, avoid burns.

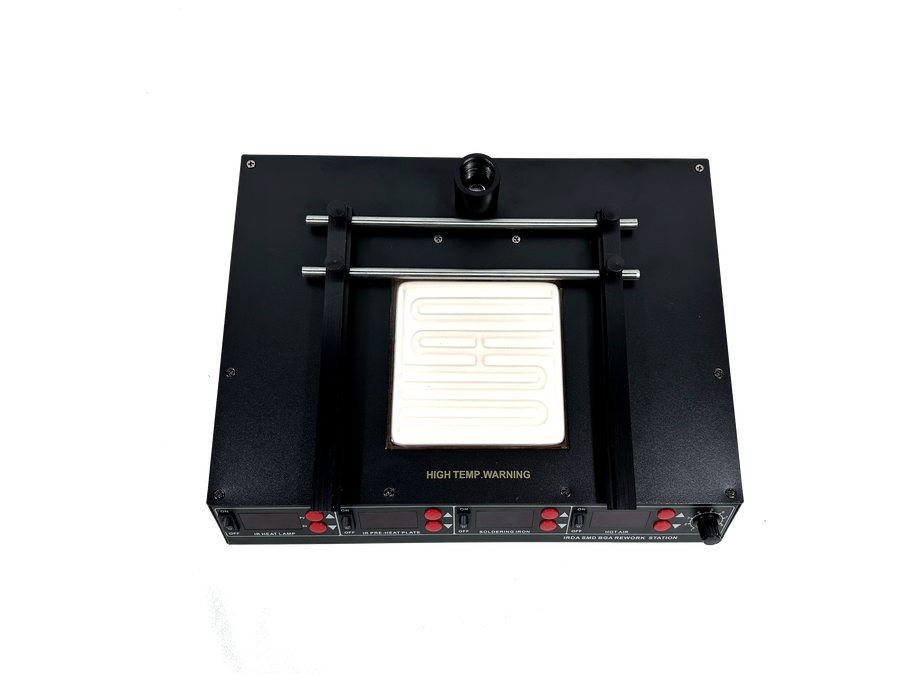

12. Preheating station is a professional maintenance equipment, specially designed circuit board telescopic clamp table, Adopts two-axis fixing technology, can move the fixed bracket at will, to assist the fixed circuit board for preheating and rapid dismantling. It is robust and durable, suitable for all types of circuit boards and components.
13. Preheating station is also equipped with efficient heating elements and a precise temperature control system, which allows the preheater to quickly raise the temperature and achieve the ideal de-soldering effect in a short time with the hot air gun.
14. Infrared uses infrared light to transfer heat, strong penetration, uniform heating of components, beyond the traditional hot air heating method, to prevent blowing away the small components around the IC.
15. There are two infrared operating modes:
The first is the external sensor temperature control mode, that is, the sensor detects the IC surface temperature control.
The second is no external sensor temperature control, easy to operate.
16. Universal light is a low-voltage LED lighting device with bright, delicate, safe and energy saving features. It is not only suitable for various lighting occasions, but also can play an auxiliary role in the welding operation.

Parameters

Model:	8510D
Input voltage:	220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Power consumption:	1350W
Weight:	9kg
Inner box size:	460*345*305mm
Packing quantity:	1 pieces / box
Outer packing size:	460*345*305mm
Hot air gun
Working voltage:	220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Power consumption:	700W
Display form:	LED digital (Resolution 1℃)
Heating element:	Skeleton type ceramic heating core
Temperature range:	100℃－480℃ / 212℉-896℉
Temperature stability:	±1℃
Type of air flow:	Brushless fan soft wind
Gas flow:	120 L/min(max)
Noise:	Less than 45dB
Handle length:	About 100cm (Including handle line)
Soldering iron
Working voltage:	24V/AC
Rated power:	22W
Power consumption:	60W
Maximum power:	120W
Display form:	LED digital (Resolution 1℃)
Temperature range:	200℃－480℃
Heating element:	131A ceramic heating core
Temperature stability:	±2℃(no load)
Handle length:	About 100cm (Including handle line)
Preheating station
Working voltage:	220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Maximum power:	540W
Display form:	LED digital (Resolution 1℃)
Heating element:	Infrared heating disk
Temperature range:	50℃－200℃ / 122-392℉
Preheating area:	120mm×120mm
Temperature stability:	±2℃(no load)
Infrared lamp
Working voltage:	220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Maximum power:	150W
Display form:	LED digital (Resolution 1℃)
Heating element:	Infrared emission lamp
Temperature range:	100℃－350℃ / 212-662℉
Preheating area:	35mm×35mm
Temperature stability:	±2℃(no load)

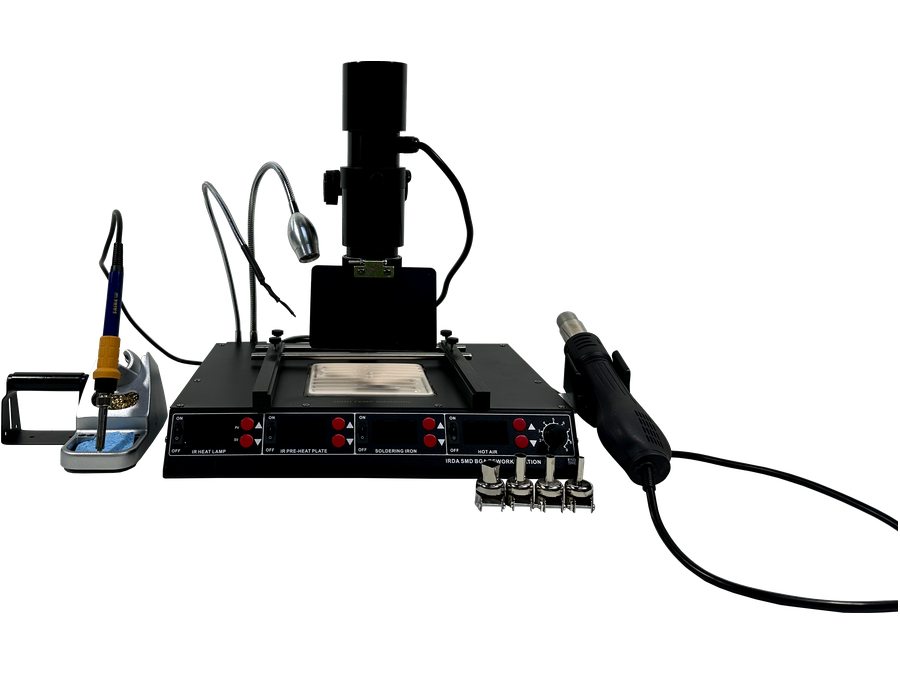

Standard Configuration
Host machine (include Hor air gun handle): 1 pcs
Infrared component: 1 pcs
Infrared temperature sensor probe: 1 pcs
Universal lighting: 1 pcs
Hot air gun rack: 1 pcs
Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge): 1 pcs
Nozzles: 4 pcs (5mm, 8mm, 10mm, 12*12mm)
User manual: 1 pcs

Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions

About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.

About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for relatively larger solder joints or pads to provide enough heat for better completion of welding operations.
2. For thicker and larger solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.

About the Preheating station
By heating the baking sheet to radiate the heat, the circuit board is heated to the appropriate temperature, and this temperature is maintained so that the area around the electronic components on the circuit board reaches a predetermined temperature. This makes it possible to use a heat gun to quickly melt solder and dissolder electronic components. The preheating table helps to avoid the failure to reach the melting point of the solder due to rapid temperature loss, which makes it impossible to complete the desoldering of electronic components. The preheating platform not only improves the efficiency of the desoldering, but also guarantees the quality of the desoldering.
1. Suitable for auxiliary dismantling of large solder joints or pads, especially for heavy or large welding materials, and the presence of heat-absorbing parts such as metals around. It provides sufficient heat and is used in conjunction with a heat gun to better complete welding operations.

About the infrared
By transferring heat through infrared lamps, the solder is heated and melted to achieve the desoldering of electronic components.
1. Infrared lamp is an efficient, safe and practical maintenance tool, which is suitable for the diswelding of various electronic components.
2. It can provide concentrated and stable heat, especially suitable for the dismantling of small and precise components, avoiding the movement of components caused by wind.
3. The heating method can protect the circuit board and components from the impact of strong wind, which is more safe and reliable.
4. The user can adjust the Angle and distance of the infrared lamp according to the need to achieve accurate heat conduction and improve work efficiency.
